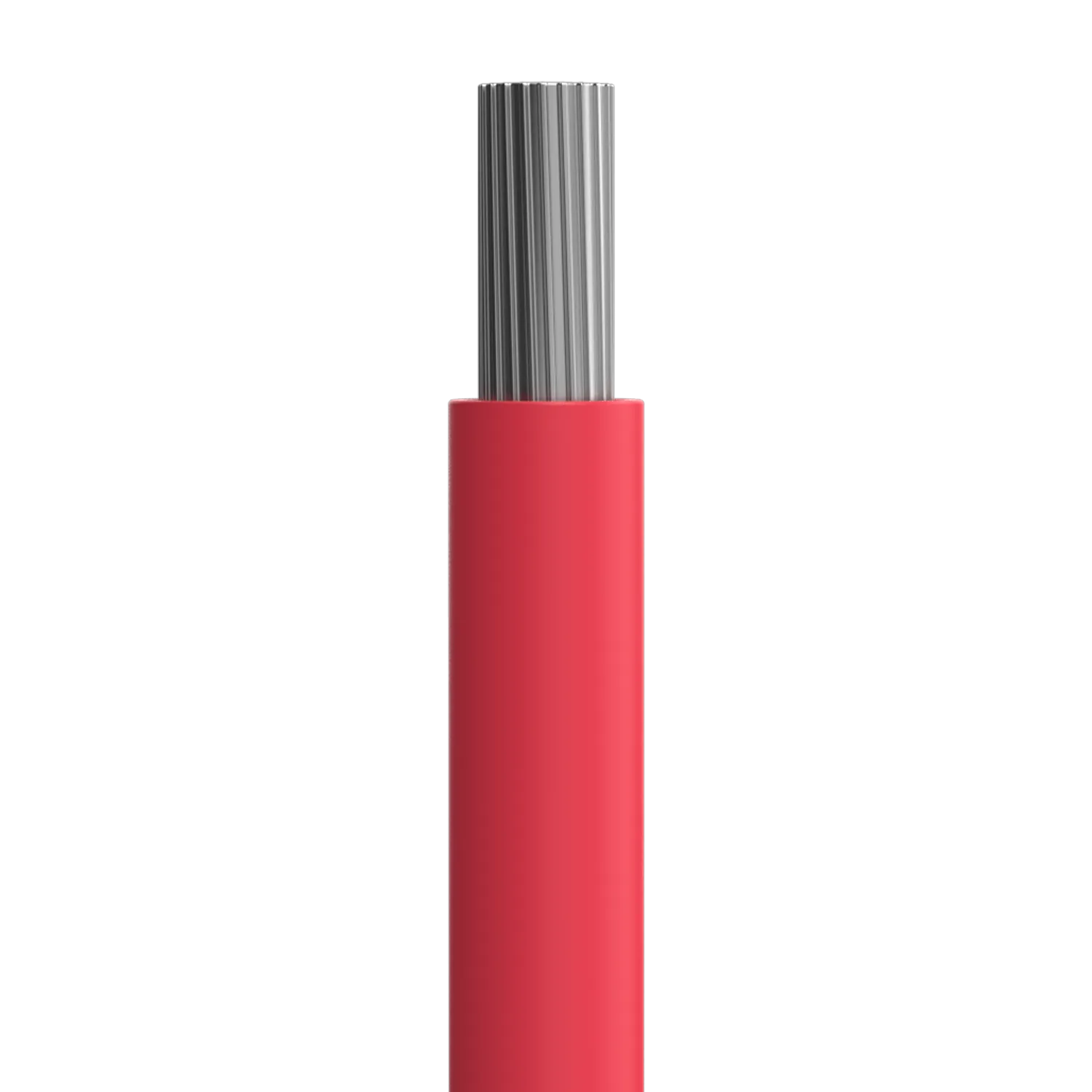

Conductor: Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).
Insulation: Low coefficient of friction, abrasion, moisture, and heat resistant colored crosslinked polyethylene (XLPE).
Colored XLPE
Overall Diameter Less than or Equal to 1.000 in
Overall Diameter Greater than 1.000 in
These cables are manufactured and tested to meet or exceed the following standards:
| Item # |
Conductor Size |
Conductor Diameter |
Insulation Thickness |
Overall Diameter (in) |
Al Weight |
Net Weight |
| A8-01XHHW | 8 | 0.134 | 0.045 | 0.224 | 15.5 | 27.1 |
| A6-01XHHW | 6 | 0.169 | 0.045 | 0.259 | 24.7 | 38.6 |
| A4-01XHHW | 4 | 0.213 | 0.045 | 0.303 | 39.3 | 56.1 |
| A3-01XHHW | 3 | 0.238 | 0.045 | 0.328 | 49.5 | 67.9 |
| A2-01XHHW | 2 | 0.268 | 0.045 | 0.358 | 62.5 | 82.9 |
| A1-01XHHW | 1 | 0.299 | 0.055 | 0.409 | 78.8 | 107 |
| A1/0-01XHHW | 1/0 | 0.336 | 0.055 | 0.446 | 99.4 | 131 |
| A2/0-01XHHW | 2/0 | 0.376 | 0.055 | 0.486 | 125 | 159 |
| A3/0-01XHHW | 3/0 | 0.423 | 0.055 | 0.533 | 158 | 196 |
| A4/0-01XHHW | 4/0 | 0.475 | 0.055 | 0.585 | 199 | 241 |
| A250-01XHHW | 250 | 0.520 | 0.065 | 0.650 | 235 | 290 |
| A300-01XHHW | 300 | 0.570 | 0.065 | 0.700 | 282 | 342 |
| A350-01XHHW | 350 | 0.616 | 0.065 | 0.746 | 329 | 393 |
| A400-01XHHW | 400 | 0.659 | 0.065 | 0.789 | 376 | 444 |
| A500-01XHHW | 500 | 0.736 | 0.065 | 0.866 | 471 | 546 |
| A600-01XHHW | 600 | 0.813 | 0.080 | 0.973 | 565 | 668 |
| A700-01XHHW | 700 | 0.877 | 0.080 | 1.037 | 659 | 770 |
| A750-01XHHW | 750 | 0.908 | 0.080 | 1.068 | 706 | 820 |
| A900-01XHHW | 900 | 0.999 | 0.080 | 1.159 | 847 | 972 |
| A1000-01XHHW | 1000 | 1.060 | 0.080 | 1.220 | 941 | 1073 |
Show
entries.
Notes:
