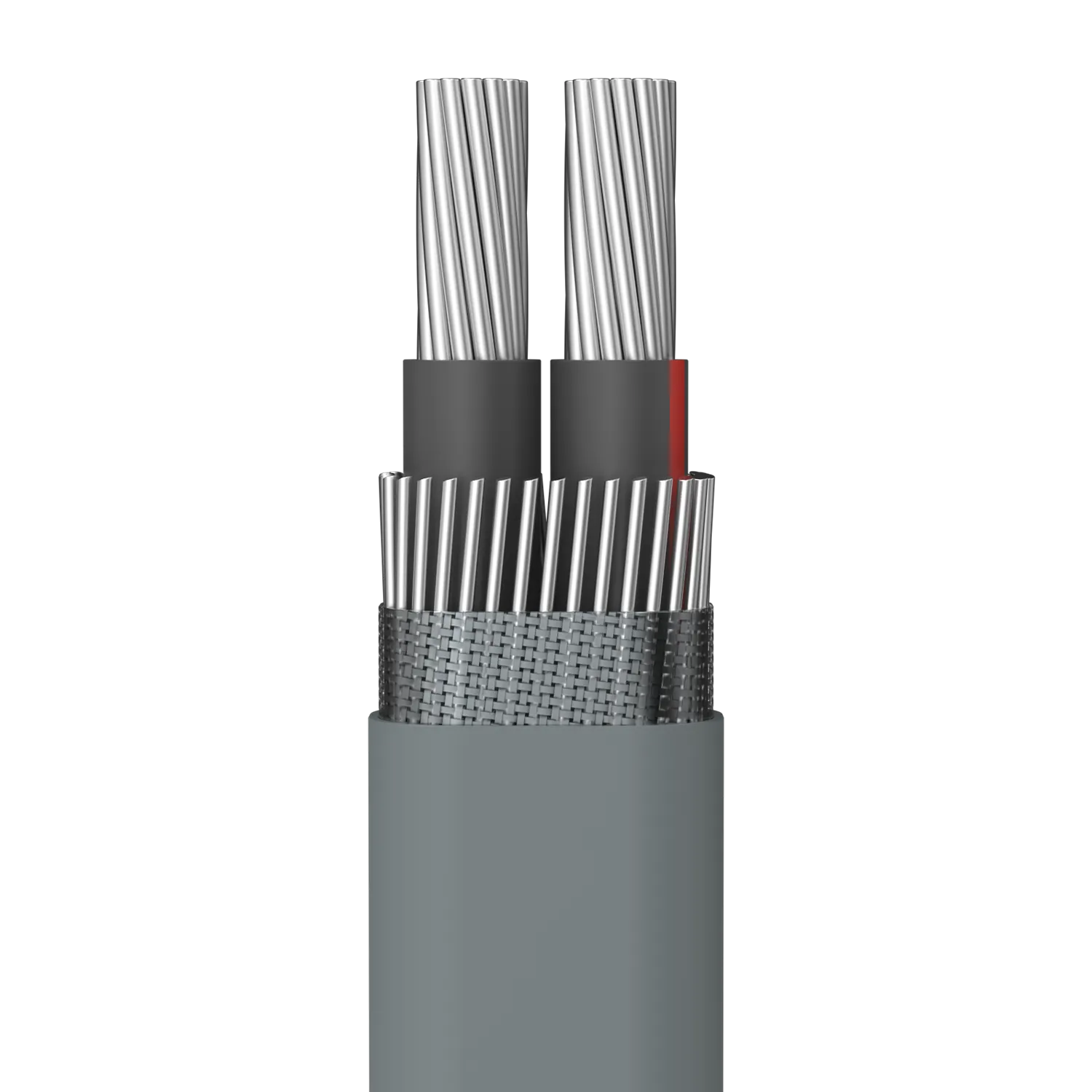

Conductor: Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).
Insulation: Abrasion, moisture, and heat resistant color coded crosslinked polyethylene (XLPE), UL Type XHHW.
Assembly: Solid bare wires are helically applied over a pair of parallel insulated conductors. A flame retardant fiberglass reinforced binder tape assembles the core in a flat configuration.
Tape and Finish Covering: Sunlight resistant, RoHS compliant, flame retardant, gray polyvinyl chloride (PVC) material.
Overall Diameter Less than or Equal to 1.000 in
Overall Diameter Greater than 1.000 in
These cables are manufactured and tested to meet or exceed the following standards:
| Item # | Number of Insulated Conductors | Conductor Size | Overall Diameter | Weight | |||
|
Insulated |
Bare |
Major |
Minor |
Aluminum |
Net |
||
| A8-02SEU8 | 2 | 8 | 8 | 0.606 | 0.382 | 46.8 | 96.5 |
| A6-02SEU6 | 2 | 6 | 6 | 0.700 | 0.441 | 74.6 | 139 |
| A4-02SEU6 | 2 | 4 | 6 | 0.788 | 0.485 | 104.0 | 177 |
| A4-02SEU4 | 2 | 4 | 4 | 0.786 | 0.483 | 119.0 | 192 |
| A2-02SEU4 | 2 | 2 | 4 | 0.896 | 0.538 | 165.0 | 249 |
| A2-02SEU2 | 2 | 2 | 2 | 0.965 | 0.607 | 189.0 | 302 |
| A1-02SEU1 | 2 | 1 | 1 | 1.090 | 0.681 | 238.0 | 380 |
| A1/0-02SEU2 | 2 | 1/0 | 2 | 1.141 | 0.695 | 263.0 | 404 |
| A1/0-02SEU1/0 | 2 | 1/0 | 1/0 | 1.139 | 0.693 | 300.0 | 440 |
| A2/0-02SEU1 | 2 | 2/0 | 1 | 1.244 | 0.758 | 330.0 | 494 |
| A2/0-02SEU2/0 | 2 | 2/0 | 2/0 | 1.241 | 0.755 | 378.0 | 540 |
| A4/0-02SEU2/0 | 2 | 4/0 | 2/0 | 1.439 | 0.854 | 526.0 | 717 |
| A4/0-02SEU4/0 | 2 | 4/0 | 4/0 | 1.443 | 0.858 | 601.0 | 794 |
Show
entries.
Notes:
