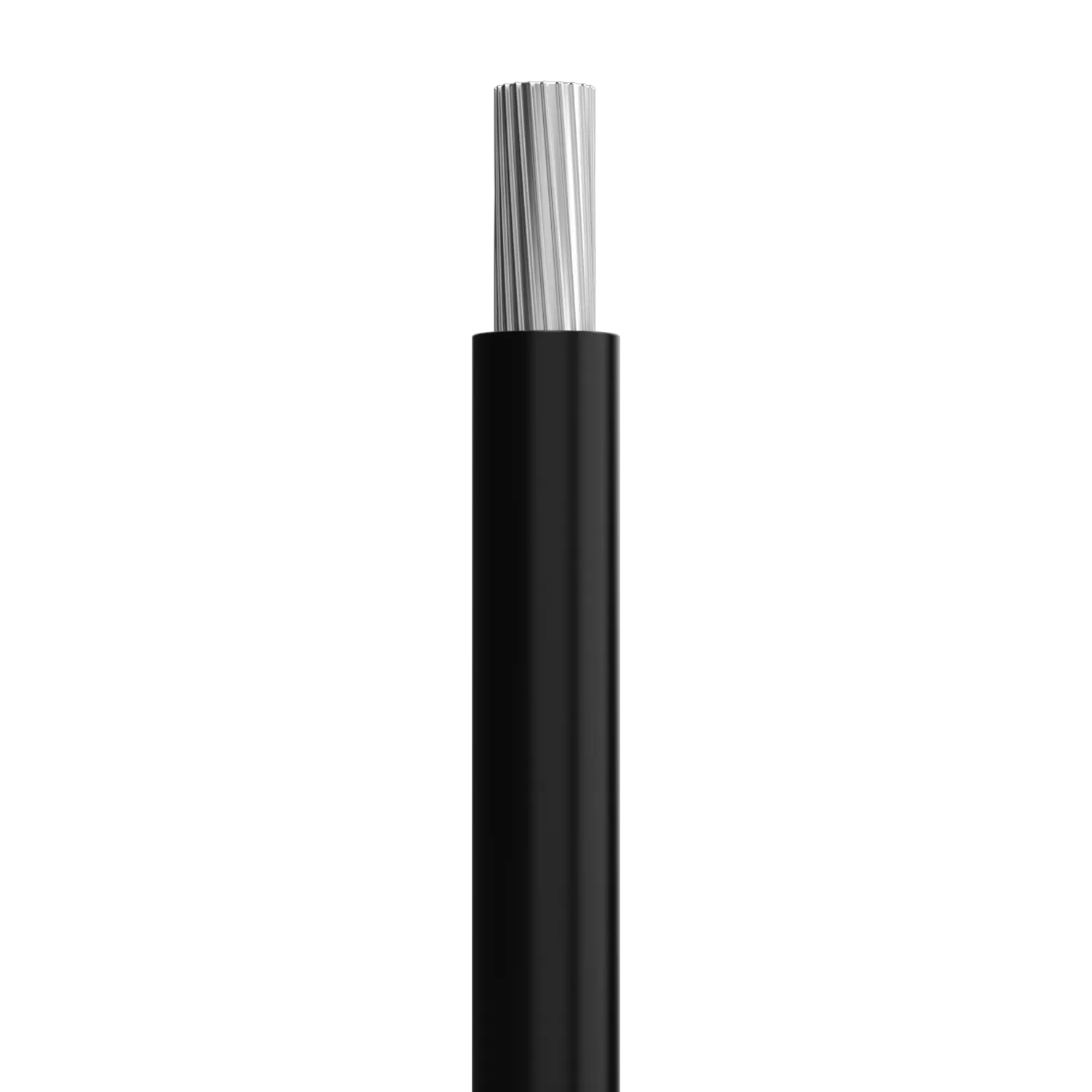

600 V 1350 Aluminum URD Cable – Single (Type USE-2)

600 V 1350 Aluminum URD Cable – Single (Type USE-2)

URD Single UL Type USE-2, 1350 Aluminum Conductor, 90°C Dry or Wet, Rated 600 V
Code Word

Conductor Size
(AWG or kcmil)

Insulation Thickness
(in)

Diameter
(in)

Al Weight
(lb / 1000 ft)

Net Weight
(lb / 1000 ft)

Princeton 6 0.060 0.289 24.7 44.5
Mercer 4 0.060 0.333 39.3 62.9
Clemson 2 0.060 0.388 62.5 90.7
Kenyon 1 0.080 0.459 78.8 122
Harvard 1/0 0.080 0.496 99.4 147
Yale 2/0 0.080 0.536 125.0 178
Tufts 3/0 0.080 0.583 158.0 215
Beloit 4/0 0.080 0.635 199.0 263
Hofstra 250 0.095 0.710 235.0 319
Gonzaga 300 0.095 0.760 282.0 372
Rutgers 350 0.095 0.806 329.0 427
Emory 500 0.095 0.926 471.0 583
Duke 600 0.110 1.033 565.0 711
Furman 700 0.110 1.097 659.0 816
Sewanee 750 0.110 1.128 706.0 866
Fordham 1000 0.110 1.280 941.0 1124

Notes:

  1. Dimensions and weights are subject to standard manufacturing tolerances and are subject to change without notice.
