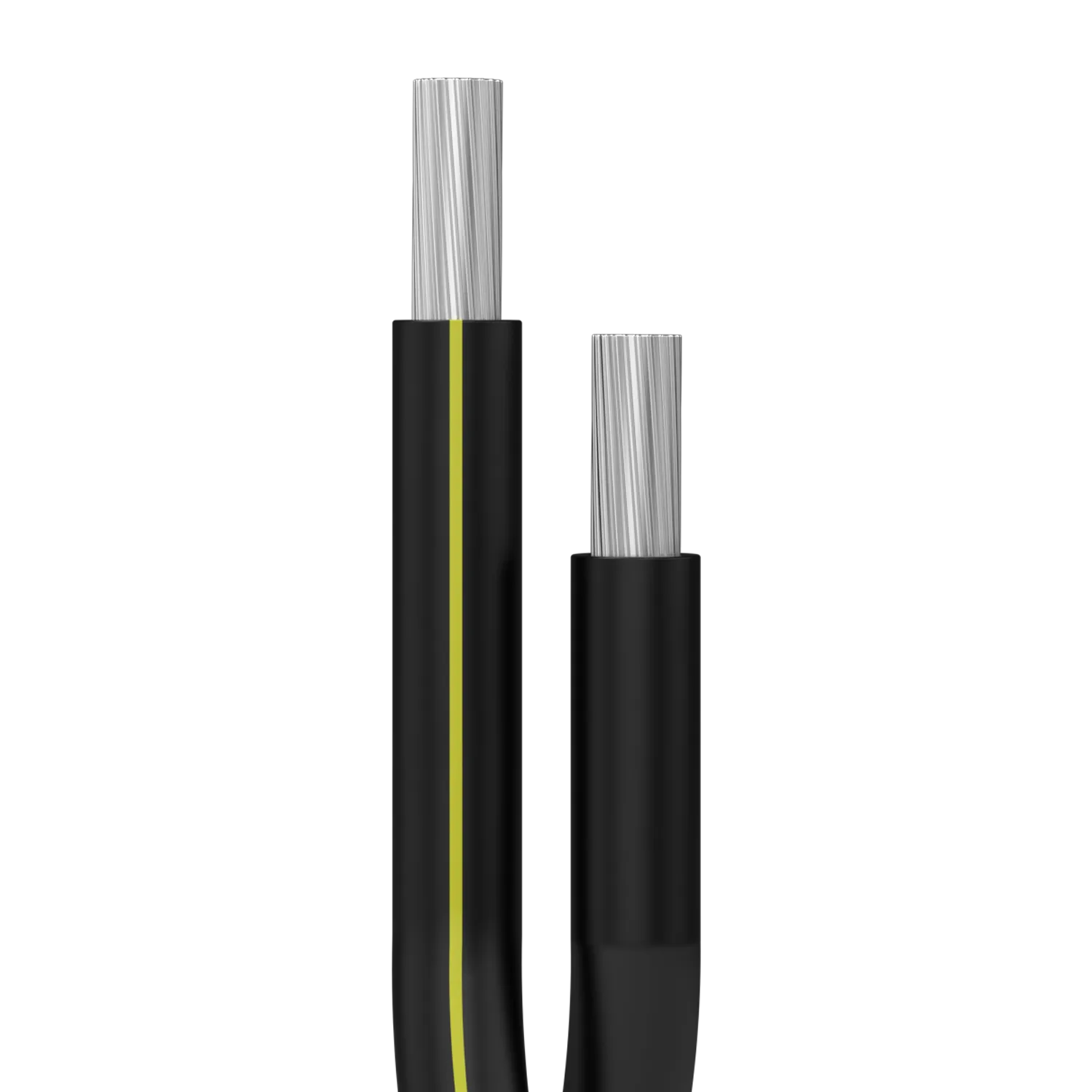

Conductor: Compact stranded 1350-H19 aluminum conductor.
Insulation: Abrasion, moisture, heat, and sunlight resistant crosslinked polyethylene (XLPE).
Assembly: Cabled assembly of 1 phase conductor and 1 neutral conductor.
Overall Diameter Less than or Equal to 1.000 in
Overall Diameter Greater than 1.000 in
These cables are manufactured and tested to meet or exceed the following standards:
| Code Word | Phase | Neutral |
Overall Diameter |
Weight | |||||
|
Conductor Size |
Insulation Thickness |
Diameter |
Conductor Size |
Insulation Thickness |
Diameter |
Al |
Net (lb / 1000 ft) |
||
| Bard | 8 | 0.060 | 0.254 | 8 | 0.060 | 0.254 | 0.508 | 31.6 | 65.9 |
| Claflin | 6 | 0.060 | 0.289 | 6 | 0.060 | 0.289 | 0.578 | 50.2 | 90.8 |
| Delgado | 4 | 0.060 | 0.333 | 4 | 0.060 | 0.333 | 0.666 | 80.0 | 128.0 |
| Everett | 2 | 0.060 | 0.388 | 2 | 0.060 | 0.388 | 0.776 | 127.0 | 185.0 |
Show
entries.
Notes:
